Description

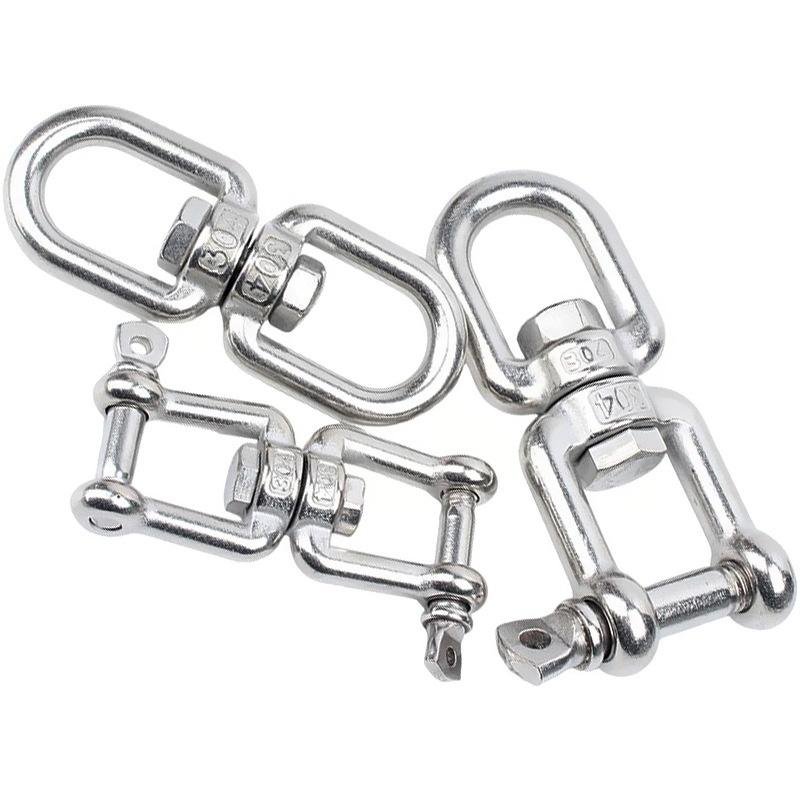

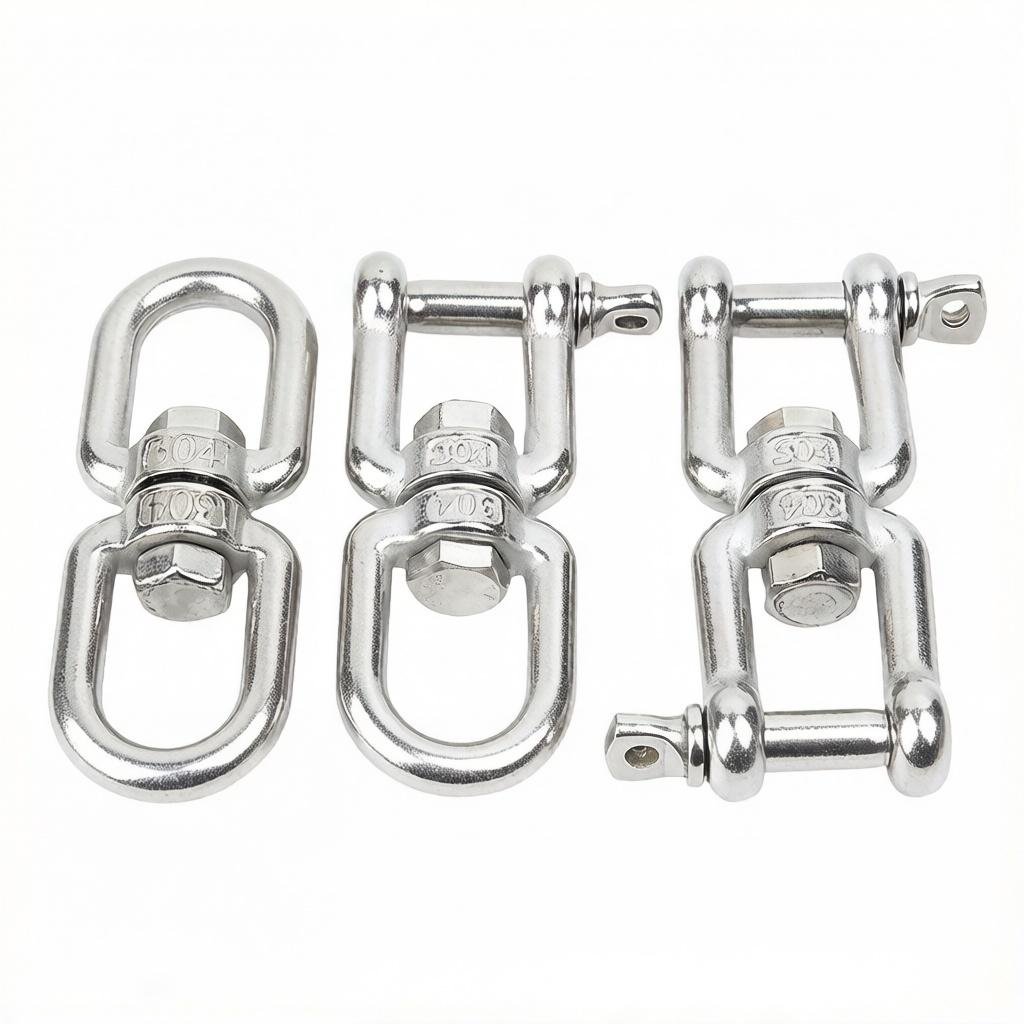

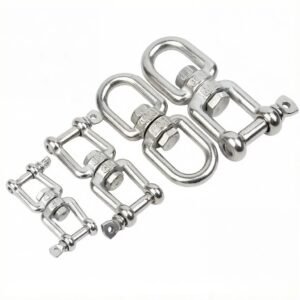

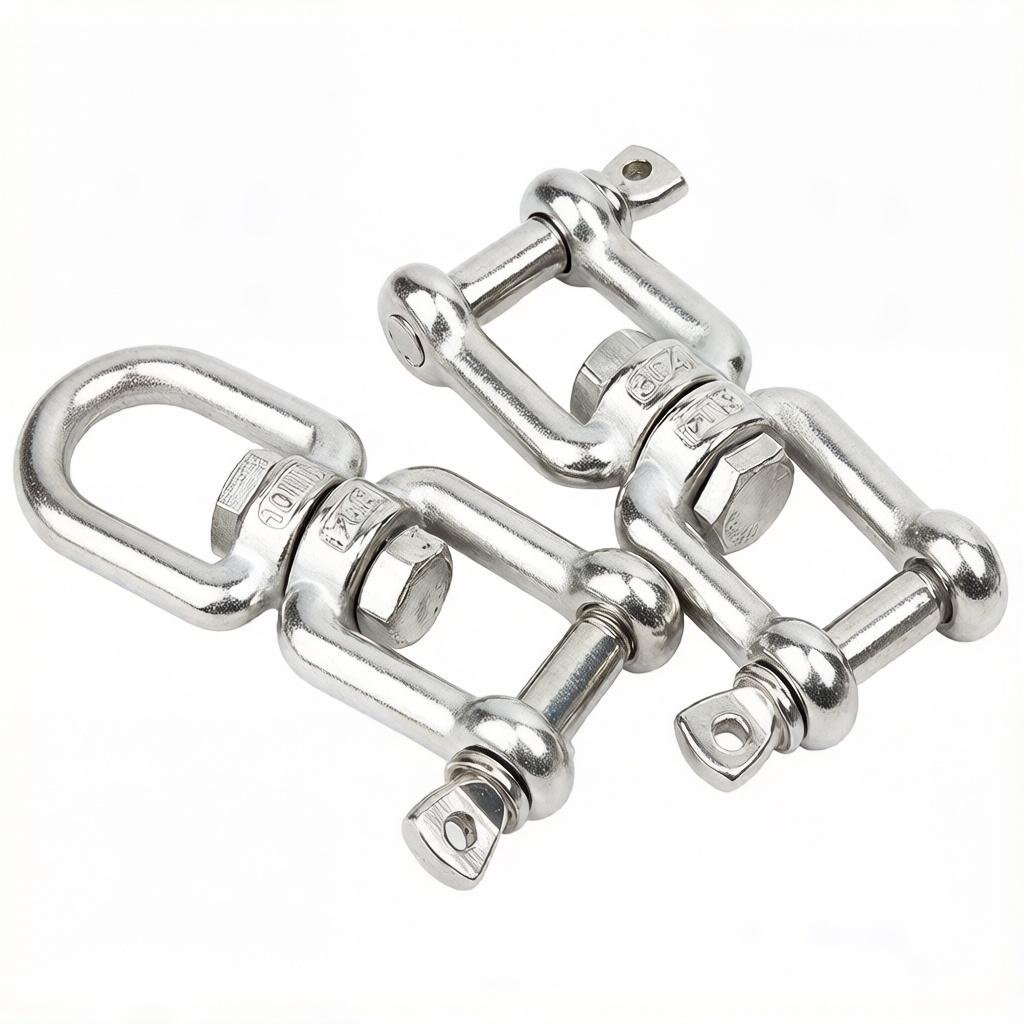

Marine Grade 304 Stainless Steel Figure 8 Swivel Link Universal Rotating Ring Chain Buckle for Rigging Hardware
| Product Specification | Inner Length of Half Ring (mm) | Inner Width of Half Ring (mm) | Product Type |
| 304 Stainless Steel Swivel Ring M3 (OO Type) | 8 | 9 | OO Type |
| 304 Stainless Steel Swivel Ring M4 (OO Type) | 10.7 | 11.3 | OO Type |
| 304 Stainless Steel Swivel Ring M5 (OO Type) | 14.2 | 13.8 | OO Type |
| 304 Stainless Steel Swivel Ring M6 (OO Type) | 17.2 | 15.5 | OO Type |
| 304 Stainless Steel Swivel Ring M8 (OO Type) | 23.1 | 20.4 | OO Type |
| 304 Stainless Steel Swivel Ring M10 (OO Type) | 27.6 | 24.2 | OO Type |
| 304 Stainless Steel Swivel Ring M12 (OO Type) | 26.3 | 25.6 | OO Type |
| 304 Stainless Steel Swivel Ring M14 (OO Type) | 35 | 31 | OO Type |
| 304 Stainless Steel Swivel Ring M16 (OO Type) | 45.8 | 38.5 | OO Type |
| 304 Stainless Steel Swivel Ring M18 (OO Type) | 49 | 37 | OO Type |
| 304 Stainless Steel Swivel Ring M20 (OO Type) | 52.4 | 39.6 | OO Type |
| 304 Stainless Steel Swivel Ring M22 (OO Type) | 63.5 | 45.5 | OO Type |
| 304 Stainless Steel Swivel Ring M25 (OO Type) | 75.6 | 60 | OO Type |
| 304 Stainless Steel Swivel Ring M28 (OO Type) | 77.6 | 70 | OO Type |
| 304 Stainless Steel Swivel Ring M4 (OX Type) | 9.5 | 8 | OX Type |
| 304 Stainless Steel Swivel Ring M5 (OX Type) | 14 | 10 | OX Type |
| 304 Stainless Steel Swivel Ring M6 (OX Type) | 15 | 12 | OX Type |
| 304 Stainless Steel Swivel Ring M8 (OX Type) | 20.5 | 16 | OX Type |
| 304 Stainless Steel Swivel Ring M10 (OX Type) | 25.5 | 22 | OX Type |
| 304 Stainless Steel Swivel Ring M12 (OX Type) | 25.5 | 25.5 | OX Type |
| 304 Stainless Steel Swivel Ring M14 (OX Type) | 35.5 | 28 | OX Type |
| 304 Stainless Steel Swivel Ring M16 (OX Type) | 45.7 | 32.5 | OX Type |
| 304 Stainless Steel Swivel Ring M20 (OX Type) | 45.9 | 32.5 | OX Type |
| 304 Stainless Steel Swivel Ring M4 (XX Type) | 10 | 8 | XX Type |
| 304 Stainless Steel Swivel Ring M5 (XX Type) | 14 | 10 | XX Type |
| 304 Stainless Steel Swivel Ring M6 (XX Type) | 15 | 12 | XX Type |
| 304 Stainless Steel Swivel Ring M8 (XX Type) | 18.5 | 17 | XX Type |
| 304 Stainless Steel Swivel Ring M10 (XX Type) | 19 | 22 | XX Type |
| 304 Stainless Steel Swivel Ring M12 (XX Type) | 21 | 25.5 | XX Type |
| 304 Stainless Steel Swivel Ring M14 (XX Type) | 35.5 | 28 | XX Type |
| 304 Stainless Steel Swivel Ring M16 (XX Type) | 98.5 | 34 | XX Type |
| 304 Stainless Steel Swivel Ring M20 (XX Type) | 35 | 38.5 | XX Type |
Bullet Points:
Made of premium 304 stainless steel, excellent rustproof and corrosion resistance, suitable for wet, saltwater and outdoor environments.
360° free universal rotation design, effectively prevent chain and rope from tangling and knotting during use.
High tensile strength and solid integrated structure, heavy load bearing capacity, wear-resistant and not easy to deform or break.
Smooth surface and flexible rotation, easy to connect and install, compatible with various chains, ropes and rigging parts.
Multi-purpose design, ideal for dog lead, pet chain, fishing gear, industrial rigging, livestock tethering and outdoor facilities.
This 304 stainless steel figure 8 universal swivel ring is a multi-functional connecting hardware widely used in pet supplies, fishing gear, industrial rigging and outdoor scenes. Adopting high-quality 304 stainless steel as raw material, the product features outstanding anti-rust, anti-corrosion and weather resistance, which can keep stable performance for a long time even in humid, rainy or saltwater conditions, greatly extending service life.
Designed with classic 8-shaped structure and 360° full-range universal rotation, it rotates smoothly without jamming. It perfectly solves the problem of chain and rope tangling, twisting and knotting, bringing more convenience and safety during application. The whole piece is integrally formed with fine workmanship, firm structure and strong tensile force. It is wear-resistant, pressure-resistant and not easy to crack or deform, supporting heavy load use.
Available in complete specifications from M3 to M28 to match different sizes of chains and ropes. The installation and connection are simple and quick without complicated tools. Versatile in usage, it works perfectly for dog chains, pet leashes, fishing accessories, lifting rigging, livestock tethering, outdoor binding and other scenarios. Reliable quality, practical function and cost-effective, it is your ideal choice for daily and industrial connecting accessories.
Our Company:
1. Experience
10 years of experience specializing in manufacturing wire cable assembly and elastic ropes.
Our products have a wide range of applications inside the lighting fixture, flowerpot, billboards, vehicles such as brake, gear, window, and another hanging system.
2.OEM
OEM, custom-made available, free samples available, we supply our customer with custom
designed fittings and terminals as per their specification.
3. High-quality direct manufacture
Our factory has advanced manufacturing equipment, including CNC high precision automatic lathes, Grinder and Polishing Machines, Automatic, Polishers, and ISO manage.
FAQ
1. Can I have a sample order for lighting hardware fittings?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 workdays, mass production time needs 7-15 workdays.
Q3. Do you have any MOQ limit for orders?
A: 1 pc for sample checking is available,mass production MOQ is 1000 pcs.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx, or TNT. It usually takes 5-8 workdays to arrive. Airline and sea shipping is also optional.
