This professional diagram details the full range of standard constructions for galvanized steel wire rope, covering classic single-strand configurations (1×7, 1×19) and industry-standard 6-strand & 8-strand lay designs (including 6×19+IWS, 8×25Fi+IWR). Every rope structure is custom-engineered to match unique project demands for ultimate tensile strength, superior flexibility, and long-lasting fatigue resistance. Clear core type markings (IWS, IWR, WS) specify the internal cable core structure, ensuring these zinc-coated steel wire ropes deliver reliable, rust-resistant performance across heavy lifting, pulling, marine and offshore operations, industrial manufacturing, security fencing, garden installations, and commercial & DIY applications worldwide.

Stock of SG Wire Rope:

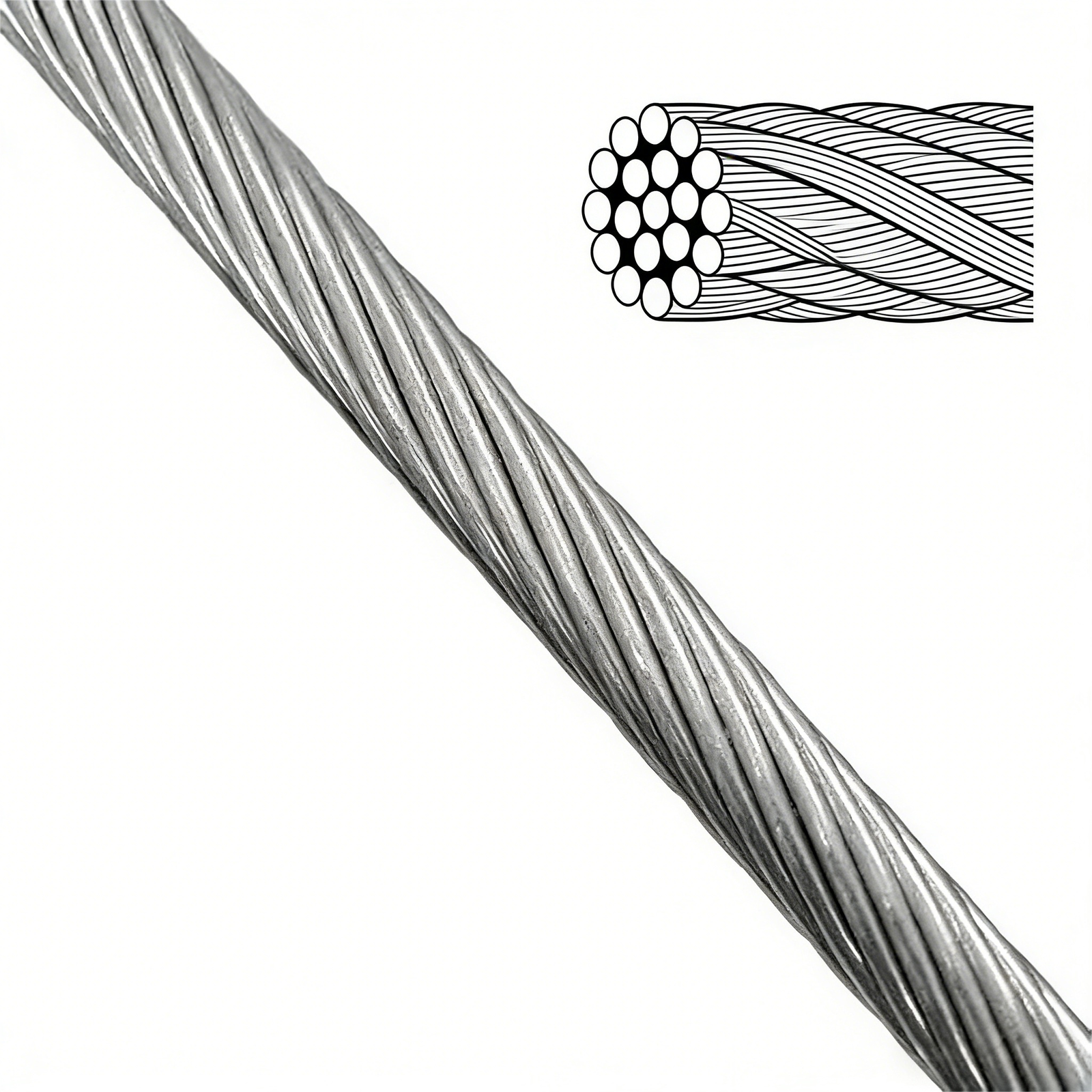

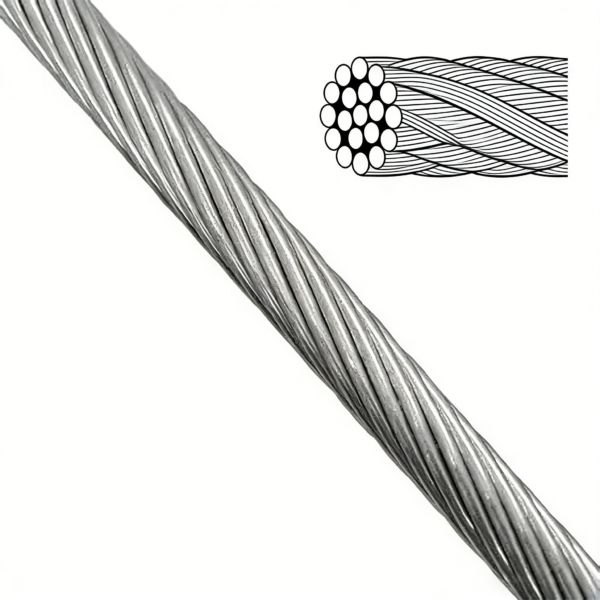

1×19  Wire Rope
	Diameter	Approx. Weight Per 1000 Ft. (lbs)	Galvanized Minimum Breaking Strength (lbs)	Stainless Minimum Breaking Strength (lbs)
	3/64″	5.5	375	375
	1/16″	8.5	500	500
	3/32″	20	1,200	1,200
	1/8″	35	2,100	2,100
	5/32″	55	3,300	3,300
	3/16″	77	4,700	4,700
	7/32″	102	6,300	6,300
	1/4″	135	8,200	8,200
1*19	9/32″	170	10,300	10,300
	5/16″	210	12,500	12,500
	3/8″	300	17,500	17,500
	7/16″	410	22,500	22,500
	1/2″	521	30,000	30,000
	9/16″	670	36,200	36,200
	5/8″	855	47,000	47,000

Applications of Galvanized Steel cable:

•Marine and Offshore: Mooring lines, sailboat rigging, lifelines, and deck lashing.
•Construction: Safety barriers, suspension bridges, balustrades, and structural support cables.
•Industrial and Lifting: Crane cables, hoisting systems, winches, and pulleys.
•Transportation: Elevator ropes, cable railings, and securing cargo.
•Architecture and Design: Decorative tensioning systems, green walls, and architectural railings.
•Mining and Tunneling: Wire rope for haulage and lifting equipment in harsh underground environments.

Galvanized Steel Wire Rope Advantages:

• Exceptional Corrosion Resistance

  It delivers outstanding resistance to pitting corrosion, crevice corrosion and stress corrosion cracking (SCC).

• High Tensile Strength and Long-Term Durability

  It combines the high tensile strength of ferritic stainless steel with the superior toughness of austenitic stainless steel.

• Enhanced Fatigue Resistance

  It maintains reliable performance under cyclic loading conditions, and effectively reduces the risk of fatigue failure in dynamic applications including cranes, winches, hoists and elevators.

• Excellent Temperature Adaptability

  It retains its mechanical strength and corrosion resistance over an extensive temperature range, making it suitable for both high-temperature industrial applications and sub-zero cryogenic environments.

• Superior Cost-Effectiveness

  Compared with conventional stainless steel grades, it features a longer service life, and cuts down maintenance costs and equipment downtime in harsh operating environments.

• Wide Versatility Across Industries

  It is widely applicable in a diverse range of sectors, including marine and shipbuilding, oil and gas, construction and infrastructure, chemical processing, and renewable energy.

• Outstanding Resistance to Sulfide Stress Cracking (SSC)

  It is specially engineered for oil and gas industry applications that are exposed to hydrogen sulfide (H₂S) environments.

Why Choose us ?

• You can get the perfect material according to your requirement at the least possible price.
• We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
• The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)

• We guarantee to give a response within 24hours(usually in the same hour)
• Provide SGS, TUV ,BV 3.2 report.
• We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
• Provide one-stop service.

Galvanized Steel Wire Rope Packing:

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Wirelock Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as.
