Description

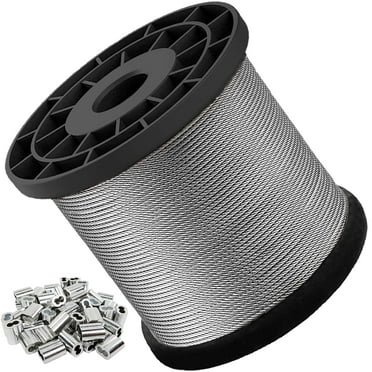

1.0mm marine grade stainless steel cable

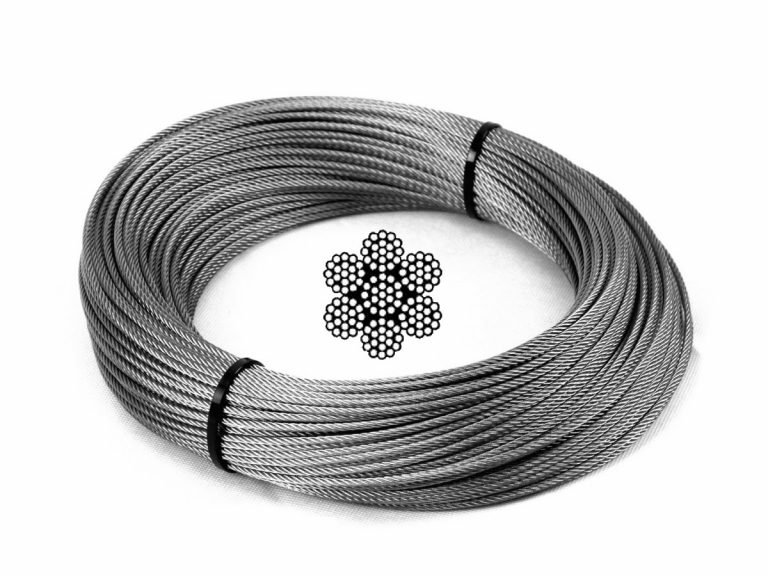

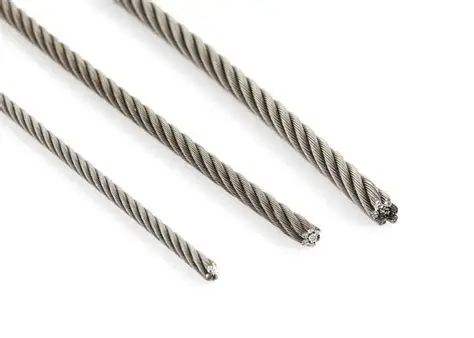

Stainless Steel Wire Rope

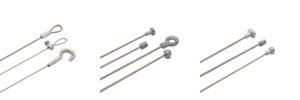

Stainless steel wire rope is a strong, flexible, and corrosion-resistant cable widely used in marine, construction, rigging, lifting, and safety applications. Made from premium stainless steel materials such as 304, 316, and Duplex 2205, it provides excellent durability in harsh environments, including saltwater and chemical exposure. With various strand structures like 7×7, 7×19, and 6×36, the rope offers a perfect balance between strength and flexibility. It is available in different diameters and can be customized with swaged ends, thimbles, or turnbuckles according to customer requirements. Ideal for both structural and dynamic load-bearing uses.

Specifications Of Stainless Wire Rope:

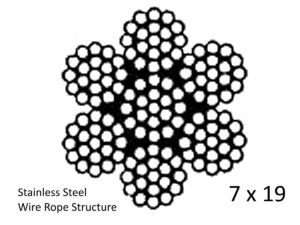

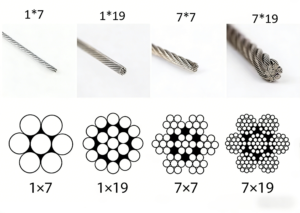

This diagram illustrates various constructions of stainless steel wire rope, including single-strand types (such as 1×7 and 1×19), as well as 6-strand and 8-strand designs (like 6×19+IWS and 8x25Fi+IWR). Each structure is suited to different requirements for tensile strength, flexibility, and fatigue resistance. Core types such as IWS, IWR, and WS indicate specific internal configurations, making these ropes suitable for a wide range of applications including lifting, pulling, marine, and

Stock of SS Wire Rope:

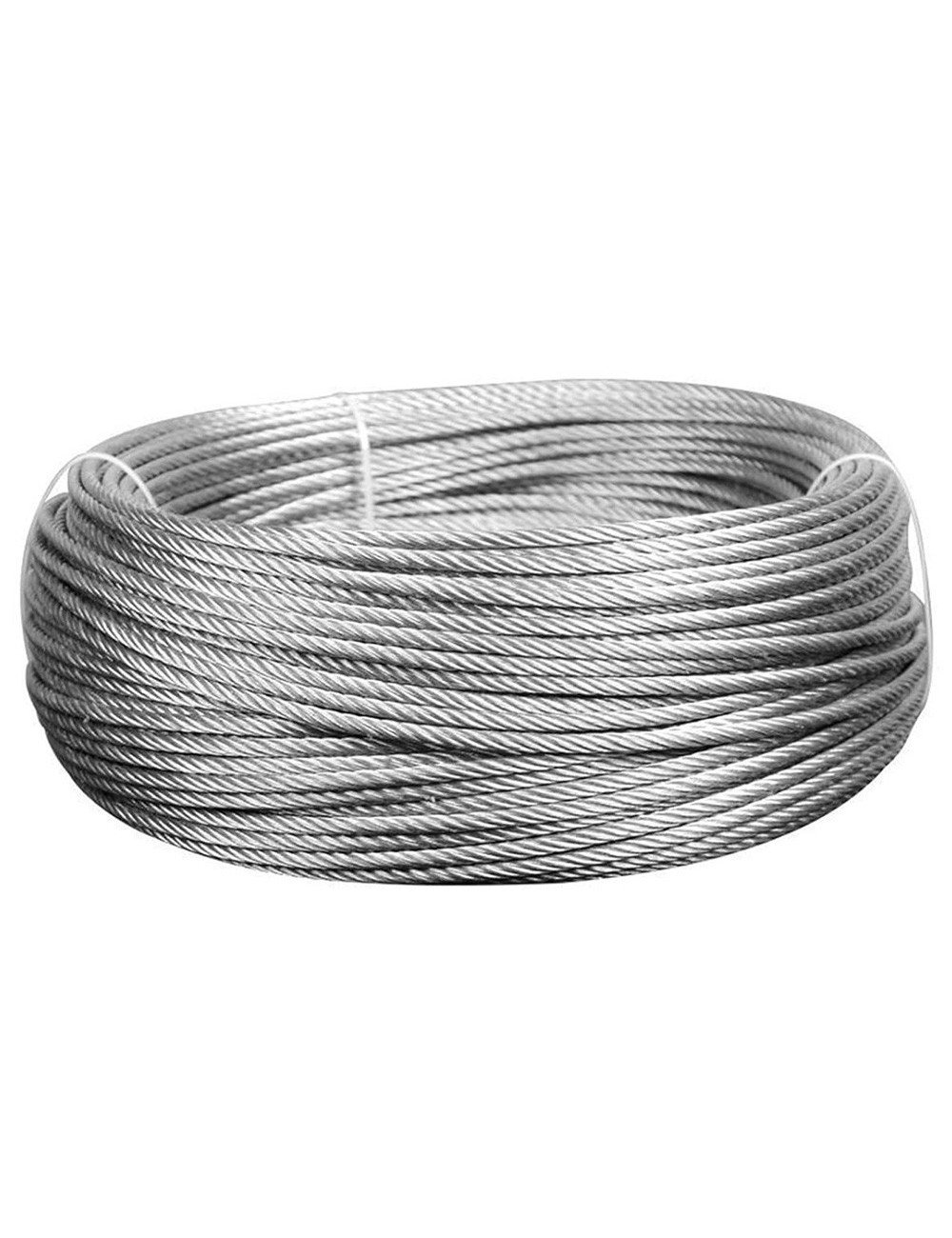

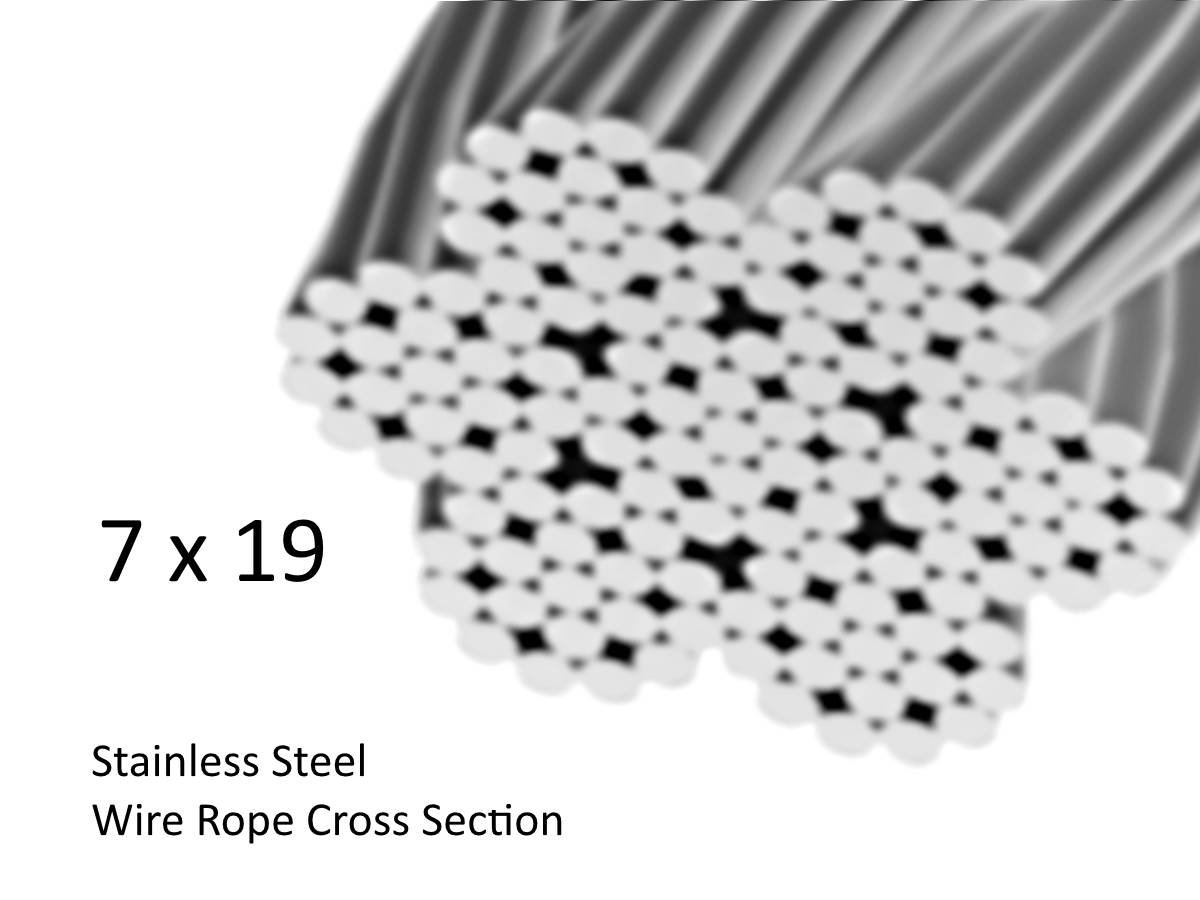

7×19 Galvanized Wire Rope
	Diameter	Approx. Weight Per 1000 Ft. (lbs)	Galvanized Minimum Breaking Strength (lbs)	Stainless Minimum Breaking Strength (lbs)
	3/64″	4.2	270	270
	1/16″	7.5	480	480
	3/32″	17.4	1,000	920
	1/8″	29	2,000	1,760
	5/32″	45	2,800	2,400
	3/16″	65	4,200	3,700
	7/32″	86	5,600	5,000
	1/4″	110	7,000	6,400
	5/16″	173	9,800	9,000
7*19	3/8″	243	14,400	12,000

Applications of stainless Steel cable:

•Marine and Offshore: Mooring lines, sailboat rigging, lifelines, and deck lashing.
•Construction: Safety barriers, suspension bridges, balustrades, and structural support cables.
•Industrial and Lifting: Crane cables, hoisting systems, winches, and pulleys.
•Transportation: Elevator ropes, cable railings, and securing cargo.
•Architecture and Design: Decorative tensioning systems, green walls, and architectural railings.
•Mining and Tunneling: Wire rope for haulage and lifting equipment in harsh underground environments.

Stainless Steel Wire Rope Advantages:

• Exceptional Corrosion Resistance

  It delivers outstanding resistance to pitting corrosion, crevice corrosion and stress corrosion cracking (SCC).

• High Tensile Strength and Long-Term Durability

  It combines the high tensile strength of ferritic stainless steel with the superior toughness of austenitic stainless steel.

• Enhanced Fatigue Resistance

  It maintains reliable performance under cyclic loading conditions, and effectively reduces the risk of fatigue failure in dynamic applications including cranes, winches, hoists and elevators.

• Excellent Temperature Adaptability

  It retains its mechanical strength and corrosion resistance over an extensive temperature range, making it suitable for both high-temperature industrial applications and sub-zero cryogenic environments.

• Superior Cost-Effectiveness

  Compared with conventional stainless steel grades, it features a longer service life, and cuts down maintenance costs and equipment downtime in harsh operating environments.

• Wide Versatility Across Industries

  It is widely applicable in a diverse range of sectors, including marine and shipbuilding, oil and gas, construction and infrastructure, chemical processing, and renewable energy.

• Outstanding Resistance to Sulfide Stress Cracking (SSC)

  It is specially engineered for oil and gas industry applications that are exposed to hydrogen sulfide (H₂S) environments.

Why Choose us ?

• You can get the perfect material according to your requirement at the least possible price.
• We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
• The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)

• We guarantee to give a response within 24hours(usually in the same hour)
• Provide SGS, TUV ,BV 3.2 report.
• We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.
• Provide one-stop service.

Stainless Steel Wire Rope Packing:

1. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
2. Wirelock Steel’s pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
